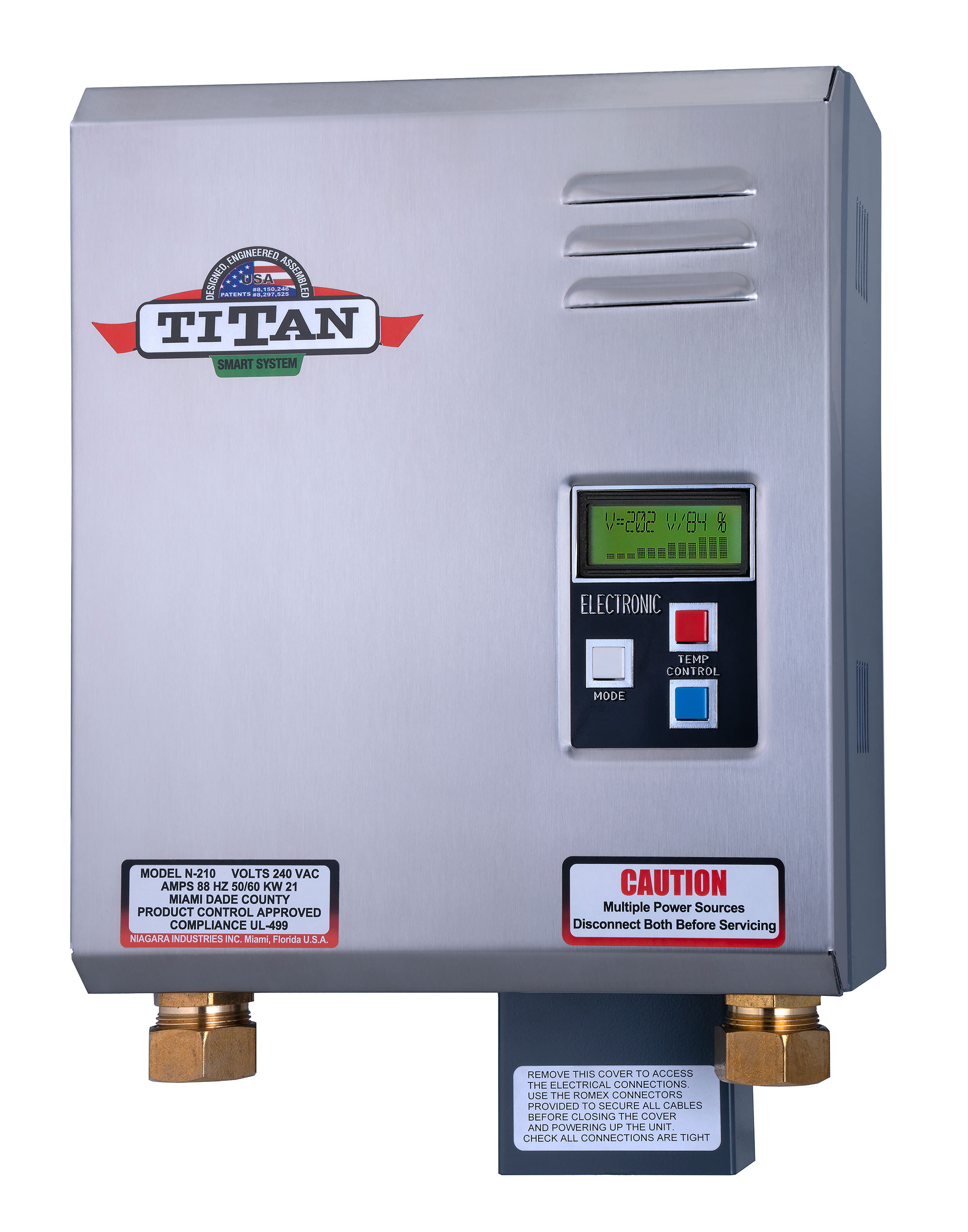

Titan-SCR4 Electronic Tankless Water Heater

The New Titan SCR-4

With more than two decades of great success and customer satisfaction with our Titan-ETH, Titan-ATC, Titan-SCR, and Titan-SCR2, we decided it was time to increase the Titan family of tankless water heaters.

Many things have changed in the last 25 years; most notably, in the past most houses had a bathroom with a standard shower and a sink. Today many homeowners and builders are upgrading the bathrooms with new things like body sprayers and multiple showerheads. Also additions like whirlpool tubs have become standard in new constructions as opposed to an expensive remodeling a few years ago. That is the main reason for the need for a bigger capacity tankless water heater development, another reason for a bigger unit is the cold temperatures in northern states where a higher rise in temperature is needed to heat the water instantly.

We spent a lot of time talking with our distributors, installers, and customers directly, getting their feedback of what they were looking for. After two years of development and testing, we are proud to say that have achieved a state of the art heater and the newest member of the Niagara Industries family the TITAN-SCR4.

Available in three models, the new TITAN-SCR4 comes in 18 KW, and 21 KW; which is ideal for a wide range of applications including residential and some commercial applications. One TITAN-SCR4 unit can supply all the hot water needed and in some applications, energy savings can pay back the unit cost in one year.

The TITAN-SCR4 tankless water heater comes with a 10 year warranty on all water carrying components and all other parts are guarantied for one year. Installation is quick and easy requiring no venting, and the TITAN-SCR4 compact size allows installation almost anywhere. The TITAN-SCR4 is without a doubt the tankless water heater of the future.

IMPORTANT NOTICE

Check specifications and installation requirements on unit used.

Voltage, Amperage, Breaker, and wire size may vary depending on local electrical standards, consult an electrician for guidance. Plastic pipes are not recommended for proper installation.

The electrical specifications are based on 240 volts. It should be noted that higher voltage will increase power, just as lower voltage will have the reverse effect. User must determine the suitability of the unit for their application.

Do not over heat water. Water temperature from 105° F to 120° F is adequate for all practical purposes.

DO NOT WASTE ENERGY.

Specifications

ComplianceUL-#499
ListingE212386
TestedMET Laboratories
NSF/ANSI-372 CertifiedETL Laboratories
Dimensions11 1/2" W x 10 1/2" H x 3" D
Weight12 Pounds
MaterialsBrass and Copper Interior/Steel Casing.
Flow Rate5 GPM
Pipe Fitting3/4" Standard Pipe
Pressure Requirements5 PSI-Min./150 PSI-Max
Voltage240 Volts
ElementsDual Nichrome Elements
Energy Efficiency99.5%
Activation0.4 GPM-on/).3 GPM-off
IndicatorsLCD Digital Real Time Readout
Warranty10 years on casing 1 year on components
ProtectionElectronic Temp. Control - Manual Resetable Thermostat

MODELS

ModelsMax KWVoltsMax Amps
N-18018KW240V75
N-21021KW240V88

Temperature rise chart are for reference only, end temperature will depend on voltage and length.

N-270                                                                                 27KW                                                                                            240V                                                                  108

Model N-180

Flow Rate
(gallons per minute)
1.0 gpm1.5 gpm2.0 gpm2.5 gpm3.0 gpm3.5 gpm4.0 gpm4.5 gpm5.0 gpm
Temp. Rise
(fahrenheit degrees)
1228161494135312725

Model N-210

Flow Rate
(gallons per minute)
1.0 gpm1.5 gpm2.0 gpm2.5 gpm3.0 gpm3.5 gpm4.0 gpm4.5 gpm5.0 gpm
Temp. Rise
(fahrenheit degrees)
1439571574841383229
